Insertion Loss Testing
The kits listed below are our standard offering - Tech Optics Ltd can tailor these to meet your specific requirements and supply you with any necessary products.
-
OLK6 series
Like the OLK5 series, AFS's (Advanced Fibre Solutions Inc.) OLK6 series fibre optic test kits also offers a complete solution for the installer to test, terminate and troubleshoot a fibre optic system with the added capability to store 500 readings to a database that may be later downloaded to AFS's Cable Plant Reporter software for PC storage and Pass/Fail loss analysis. OLK6 series kits are designed for single-mode, multimode and POF applications. All kits include the Cable Plant Reporter software, USB cable, carrying case, one connector adapter, cleaning wipes, power adjustment tool and instructional manual.
- Compact lightweight carrying case
- Windows application software
- Storage of 500+ results
- Meter calibration certificate included
- dBm (absolute) + dB (relative) measurement
- Meter – display back light
- Meter - graphical display with testing guide
- Meter - auto power off
- Multimode and single mode applications
- Meter - N.I.S.T. traceable
- Zero reference with dBm value displayed
- On screen testing procedure guides
- 650nm, 790nm, 850nm, 1300nm, 1310nm & 1550nm
Downloads
-
OLK5 series
The OLK5 series test kits are the complete solution necessary for the installer to test, terminate and trouble shoot fibre-optic systems. These test kits are designed to allow testing of all parameters of fibre optic networks, including output power levels from the fibre, coupled source power and attenuation loss in a cable. Plastic Optical Fibre and VSCEL test kits are also available. The POF kits have modular adapters on both the meter and the 665nm/650nm output of the source.
- Compact lightweight carrying case
- On-screen testing procedure guides
- 650nm, 790nm, 850nm, 1300nm, 1310nm & 1550nm
- Meter calibration certificate included
- dBm (absolute) + dB (relative) measurement
- Display back-light
- Graphical display with testing guide
- Auto power off
- Zero reference with dBm value displayed
- N.I.S.T. traceable
- Optional: 2mm and 3mm Ger detector available for larger core applications
- Single mode and multimode applications
Downloads
-
OP815 Insertion Loss Meter
The OP815 was designed to measure insertion loss (IL) on fibre optic components quickly and accurately. Insertion loss is measured by utilizing the built-in, stabilized LASER or LED source in combination with the precision optical power meter. Using the OP815, dual wavelength insertion loss (IL) measurements are performed in less than one second. The OP815 supports the USB interface. The OPL-Pro turnkey application software fully integrates this instrument into the data acquisition process of an efficient production line.
- Compact (8.5×3.5×10 inch) bench top instrument for all-in-one operation
- High speed USB Interface to standard computer
- Cable test software OPL-Pro available for writing measurement data directly into a spreadsheet
- Interface to custom applications via OPL-SDK
- Fully automated, single wavelength or dual wavelength insertion loss measurement
- Multimode units available with controlled launch condition available for EF, M80, 70/70
- Various detector options for single fibre or duplex fibre
Downloads
-
OP815-D Dual Channel (Duplex) Insertion Loss Meter
The OP815-D was designed to measure insertion loss (IL) on duplex fibre optic components quickly and accurately. The insertion loss is measured by utilizing the built-in stabilized LASER or LED source in combination with the precision optical power meter. Both channels are measured simultaneously in less than one second. Like all other OptoTest equipment, the OP815-D is supported by a USB interface. The OPL-Pro turnkey application software fully integrates this instrument into the data acquisition process of an efficient production line.
- Compact (8.5” x 3.5” x 10”) bench top instrument for all-in-one operation
- High speed USB Interface to standard computer
- Cable test software OPL-Pro included for writing measurement data directly into a spreadsheet
- Interface to custom applications via DLL
- High Performance Reference (HPR) Cable for ultimate precision loss measurements is available
- Fully automated, single wavelength or dual wavelength insertion loss measurement
- Multimode source with controlled launch condition available for EF, 70/70, etc.
- Various detector options for single fibre or duplex fibre
Downloads
-
OP831 Bidirectional Insertion Loss Meter
The OP831 is designed to perform bidirectional insertion loss measurements on single-fibre OR multi-fibre optic cables with optical switches. The integrated source and power meter together with the OPL-PRO application software allow for a fully automated bi-directional insertion loss analysis of the connected cable. This rack-mounted instrument can be equipped with either single wavelength or dual wavelength LASER or LED sources.
- Streamlines and automates bidirectional insertion loss testing
- On-board optical power meters feature relative accuracy of 0.02dB between 0dBm and -65dBm
- Wide variety of source wavelength options, including 635nm, 850nm, 1310nm, and 1550nm among many others
- Various types of sources including LEDs, Fabry-Perot LASERs, and VCSELs
- Customizable fibre type such as 9/125μm, 50/125μm, 62.5/125μm. Please contact OptoTest for other options
- Many common source connector outputs such as FC, SC, and ST
- Can be controlled remotely via USB
- Integrated temperature monitoring
- Convenient 19-inch rack-mount frame
- Can be used to test multi-fibre patchcords when paired with two OP720 switches and software
Downloads
-

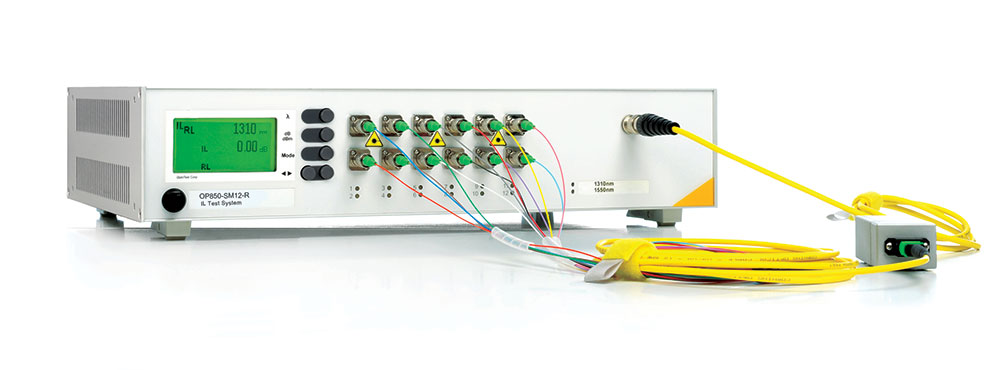

OP850 Multichannel Insertion Loss Meter
The OP850 offers a very efficient solution for measuring insertion loss (IL) on multiple fibre cables or ribbon cables with MTP or MXC components. Insertion loss (IL) is quickly and accurately measured with the use of continuous wave (CW) sources in both single mode (SM) or multimode (MM) wavelengths combined with a highly repeatable optical switch. The system can be customized with multiple wavelengths and include between 4 and 24 channels.
- Ideal for MTP/MPO ribbon cables
- Configurable for harsh environment connectors such as 29504 or 38999
- High speed USB Interface for communication
- Cable test software OPL-MAX available for writing measurement data directly into a spreadsheet
- Interface to custom applications via DLL
- Fully automated, single wavelength, dual wavelength or quad wavelength insertion loss measurement
- Multimode source with controlled launch condition available for underfill, full-fill or overfill
- Various detector options for single fibre, duplex fibre, or ribbon fibre cables
