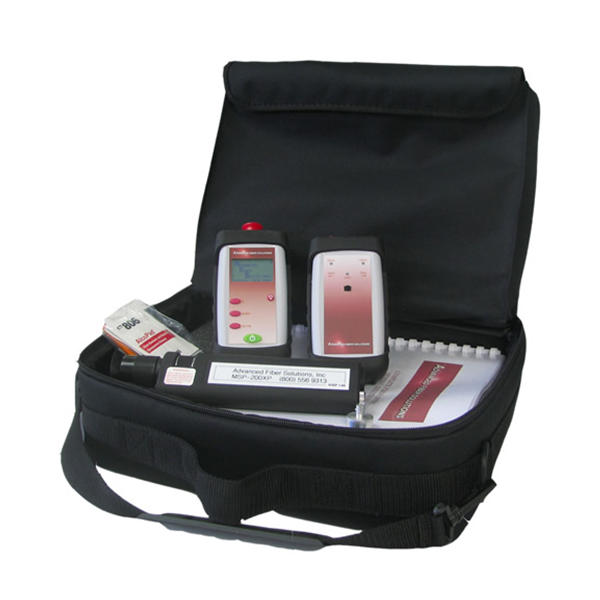

The OLK5 series test kits are the complete solution necessary for the installer to test, terminate and trouble shoot fibre-optic systems. These test kits are designed to allow testing of all parameters of fibre optic networks, including output power levels from the fibre, coupled source power and attenuation loss in a cable. Plastic Optical Fibre and VSCEL test kits are also available. The POF kits have modular adapters on both the meter and the 665nm/650nm output of the source.
- Compact lightweight carrying case
- On-screen testing procedure guides
- 650nm, 790nm, 850nm, 1300nm, 1310nm & 1550nm
- Meter calibration certificate included
- dBm (absolute) + dB (relative) measurement
- Display back-light
- Graphical display with testing guide
- Auto power off
- Zero reference with dBm value displayed
- N.I.S.T. traceable
- Optional: 2mm and 3mm Ger detector available for larger core applications
- Single mode and multimode applications
