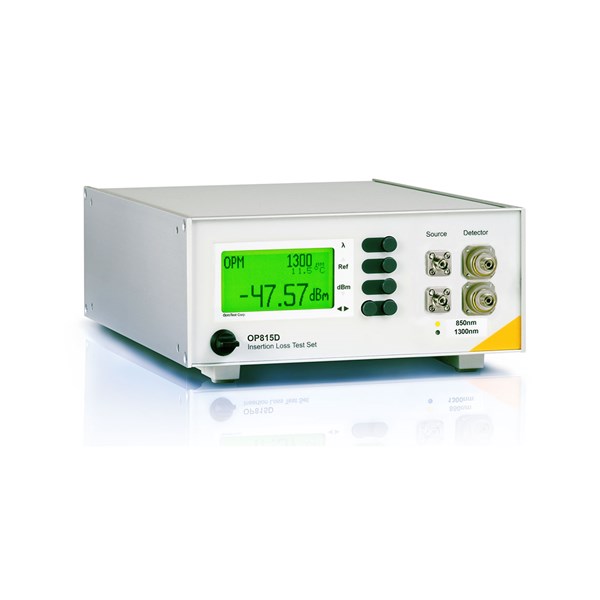

The OP815-D was designed to measure insertion loss (IL) on duplex fibre optic components quickly and accurately. The insertion loss is measured by utilizing the built-in stabilized LASER or LED source in combination with the precision optical power meter. Both channels are measured simultaneously in less than one second. Like all other OptoTest equipment, the OP815-D is supported by a USB interface. The OPL-Pro turnkey application software fully integrates this instrument into the data acquisition process of an efficient production line.



  • Compact (8.5” x 3.5” x 10”) bench top instrument for all-in-one operation
  • High speed USB Interface to standard computer
  • Cable test software OPL-Pro included for writing measurement data directly into a spreadsheet
  • Interface to custom applications via DLL
  • High Performance Reference (HPR) Cable for ultimate precision loss measurements is available
  • Fully automated, single wavelength or dual wavelength insertion loss measurement
  • Multimode source with controlled launch condition available for EF, 70/70, etc.
  • Various detector options for single fibre or duplex fibre
