Patch Panels

  1. Patch Panel

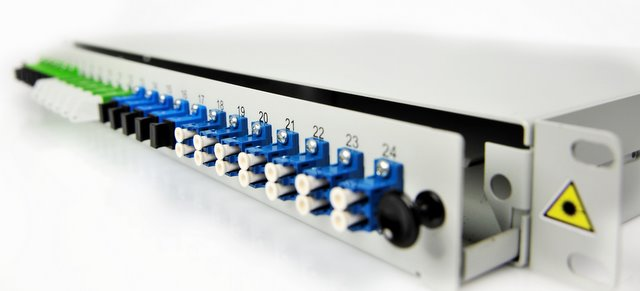

    We offer a range of fixed and sliding 19" rack mount, cost-effective fibre patch panels. A choice of connector port styles and a range of numbers of ports can be selected on the front of the panel. Patch panels can be supplied as "just the box", or can be loaded to user requirements with fibre management, splice cassettes, connector adaptors and fibre pigtails.


    • Rackmount patchpanel enclosures are designed for direct termination of up to 48 fibers (24 x DUPLEX)
    • The heavy-duty metal body provides excellent protection of the inside fibers
    • To meet your specific requirements we offer a large variety of connectors and adapters
    • Enclosure has a slide and removable drawer
    • It can be provided fully loaded with adaptors, pigtails, cable glands, or unloaded
    • For splicing applications - up to four splice trays - can be easily mounted inside


    • 19” rackmount module
    • Compatible with both singlemode and multimode fibers
    • Up to 48-way coupler based connectivity
    • Easy access to jumpers and terminated cables
    • Up to 4 splice cassettes
    • RAL 7035 (gray) or RAL 9005 (black) powder painting as a standard
    • Provides minimum bending radius ( 1,5 ')
    • Adjustable mounting brackets (19” mounting posts and recessed)
    • FTTH, Telecom, WDM and LAN solutions
