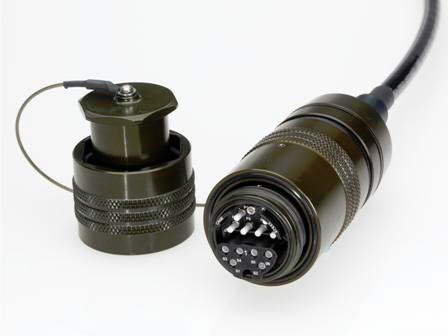

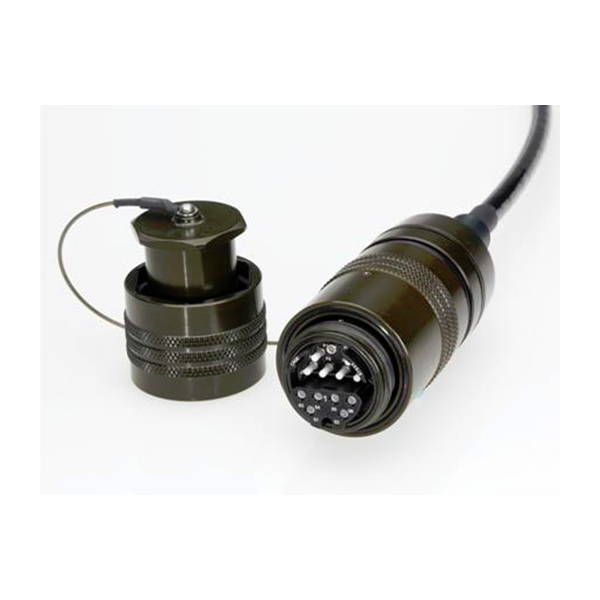

The TFOCA-III® series of 6 & 24-channel fibre optic connectors are ideal for environmentally harsh conditions. The TFOCA-III® design utilizes the latest technology in fibre optic connectivity by incorporating industry standard physical contact ceramic ferrules and alignment sleeves.
Features
- Hermaphroditic design for versatility - enables multiple TFOCA-III® plug assemblies to be daisy-chained
- Removable end cap allows for easy field maintenance and cleaning
- 6 & 24-channel connector design is ideal for high-density harsh environment applications
- Superior cable retention strength is designed to meet 400 lb (1,780N) pull strength while protecting fibres from stress
- Zn-Ni plating provides substantial longevity to corrosive environments. Meets new mandate set by the Environmental Protection Agency for elimination of heavy metal plating
- Commercial ceramic ferrule technology enables TFOCA-III® connector to provision multimode and single mode interconnect with a variety of polishes including SPC and UPC
- Solid core alignment sleeves are more robust than split alignment sleeves
- Hermaphroditic dust cap - plug and/or receptacle dust caps connect together to prevent dust and moisture penetration during deployable conditions
- Optional key positions - four key positions (1,2,3, universal) available, enabling segregation of mated plug/receptacles or plug/plug, through mechanical interface
- Field repairable using existing parts - additional connector components (other than termini) are not required to perform field repair
- Also available in stainless steel, which allows the connector to be used in a variety of applications
