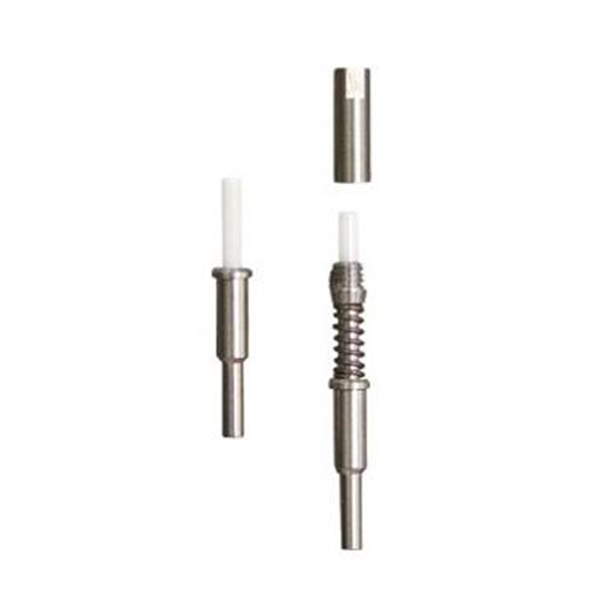

Tech Optics offer high quality M29504/4 & /5 style fibre optic termini providing superior optical and mechanical performance. Designed to fit into MIL-DTL-38999 Series III, pin size 16 connectors, this low cost, high precision termini family is ideal for harsh environment fibre optic interconnections. Available for single mode and multimode applications.
For example the AFSI M29K1000 and M29L1000 series termini are qualified to MIL-STD-29504/4 & /5 Rev. D. and utilize the highest quality zirconia ceramic ferrules and split alignment sleeves available. AFSI’s tight-tolerance ferrules are optimized for low insertion loss, low back reflection and exceptional durability. All ferrules are capable of standard and ultra polished end faces for those tight optical budget applications. In addition, epoxy removal and polishing times are minimized by the ferrule’s pre-domed design feature.
The socket zirconia split alignment sleeve design ensures accurate physical contact, fibre-to-fibre alignment and guarantees the highest performing connector of its kind for use in a variety of demanding environmental conditions.
M29504 fibre optic termination system offers precise, superior and reliable connections over repeated connector mating cycles and through a wide range of harsh environmental conditions.
Features
- Precision fiber optic ceramic ferrules
- Pre-radius ferrule design
- Precision “press fit” stainless steel design
- Accurate ferrule/split sleeve alignment system
- Size 16 design (MIL-DTL-38999 compatible)
- Low insertion loss and back reflection
- AFSI termini qualified to MIL-STD-29504/4 & /5 Rev. D.
- Solid reliable connectivity through a wide range of harsh environmental conditions
- Compatible with all qualified MIL-DTL-38999, Series III connectors
- Fast termination and polish time
- Reliable, repeatable and durable connections
Specifications
| Description | Measurement/Detail |
| Back Reflection | Better than -40 dB – PC polish, better than -50 dB – enhanced PC polish |
| Insertion Loss | 0.45 typical (measured with 62.5/125mm fibre @1310nm) |
| Operating Temperature | -65°C to +150°C |
| Temperature Life | +150°C for 1000 hours |
| Vibration | 40 G random |
| Mechanical Shock | 500 G |
| Mating Durability | 500 cycles |
| Salt Spray | 500 hours |
| Cable Retention Force | 25 lb (dependent on cable construction) |
