OP-METS Multichannel Environmental Test Station

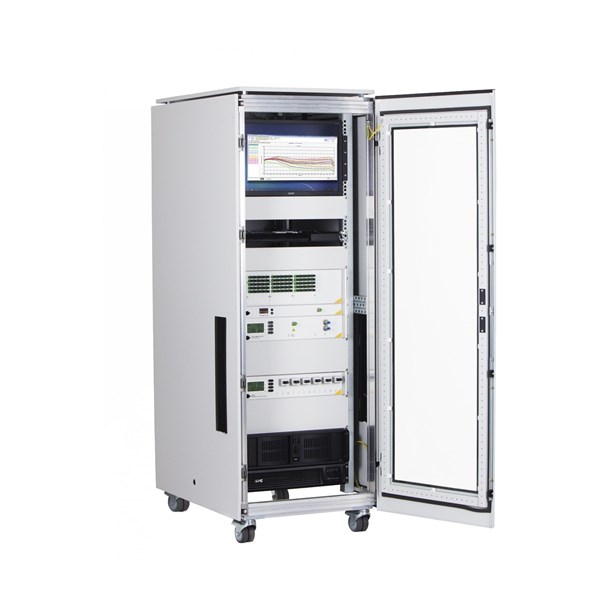

The OP Multichannel Environmental Test Station OP-METS is optimized for environmental testing of up to 144 single mode or multimode fiber assemblies or passive components.

OPL-LOGMT

OPL-LOG is a data acquisition and logging software that controls OptoTest instruments via USB along with thermal chambers, thermocouples, and other auxiliary sensors* for monitoring testing parameters. OPL-LOG provides graphs for IL, RL, and supported data acquisition devices and records the data in an Excel spreadsheet. This logging capability makes OPL-LOG well-suited for standards compliant long-term testing of fiber optic components. Tests can be configured to perform measurements at arbitrary, fixed time intervals over an arbitrary duration. For increased testing efficiency, OPL-LOG can run two simultaneous tests with different configurations on a single OP-METS system.** The OP-METS system and the accompanying OPL-LOG software can be further customized for your application requirements.

* Contact us for supported chambers and sensors. ** Due to the physical configuration of the OP-METS system each measurement is performed sequentially

Channel Repeatability±0.05dB

OPMETS	Single Mode	Multimode
Source Channels	Up to 144 Channels (more upon request)
Insertion Loss Source (±30nm)	1310nm, 1550nm 1490nm, 1625nm	850nm, 1300nm Launch Condition TIA compliant (upon request)
Return Loss Source	1310nm, 1550nm 1490nm, 1625nm	850nm, 1310nm
Source Stability*	±0.02dB
Optical Power Meter Range	IN1: +10dBm to -80dBm IN3: +6dBm to -70dBm SI3: +3dBm to -70dBm IN5: +6dBm to -60dBm IN10: 0dBm to -45dBm
Insertion Loss Accuracy**	±0.01dB
Return Loss Range	-10dB to -80dB	-10dB to -58dB
Return Loss Accuracy	±1dB
