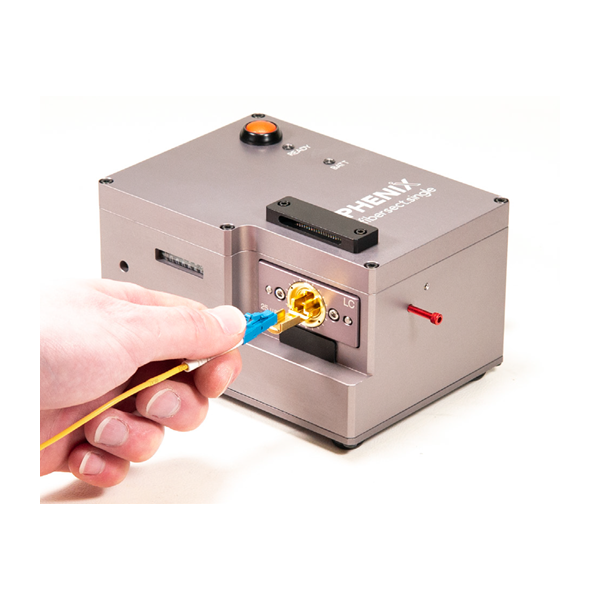

The fibersect.single™ quickly cuts off the epoxy and fibres protruding from the face of connector ferrules during the installation process. In less than a second, it produces a flat cut close to the ferrule face, creating the ideal surface for polishing. Throughput is improved by eliminating manual steps such as hand cleaving, de-nubbing and epoxy removal. The fibersect.single is optimized for cutting Simplex and Duplex epoxied connector ferrules. With a simple one button operation, small footprint, and battery power, the fibersect.single provides exceptional versatility, portability, and ease of use in the production environment.
Features and Benefits
- Optimized for cutting Simplex and Duplex connector ferrules, such as the LC, LC-APC, LC-Duplex, SC, SC-APC, SMA and many others
Simple one button operation; requires minimal operator training - Fast cutting cycle
- Long saw lifetime
- Small footprint, lightweight, portable, battery powered
- Fast, easy cut length adjustment
- Quick adapter change
- Safely collects cutting waste
- Options: Connector and ferrule adapters, vacuum waste collection, footswitch cut actuator, cut counter
Specifications
- Recommended adapters: LC, LC-APC, LC-Duplex, SC, SC-APC, ST, FC, FC-APC, MDC, MDC-J, and SMA connectors with fiber diameter of <300 μm. Bare ferrule adapters are also available.
- Custom adapters are available
- Cut cycle time: ~1 sec
- Recommended cut length from ferrule face: 75 μm
- Adjustable cut length from ferrule face: 0-600 μm; 5 μm adjusting resolution
- Maximum fiber protrusion from ferrule face before cutting: 10 mm
- Cut angle: <+/- 0.5°
- Adapter changeover time: <30 sec
- Warranty: One year or 700,000 cuts, whichever comes first when cutting LC or SC ferrules
- Power: 100-240 Vac, 50-60 Hz, 0.48 A; with rechargeable battery
- Battery capacity: >500 cuts when cutting LC or SC ferrules
- Dimensions: W x D x H / 3.75 x 5.25 x 3.50 in / 95 x 133 x 89 mm
- Weight: 2 lbs / 0.9 kg
